JPA is not magic. Behind the scenes, Spring Boot creates and wires several components that work together whenever your API hits the database.
Let’s understand what really happens.

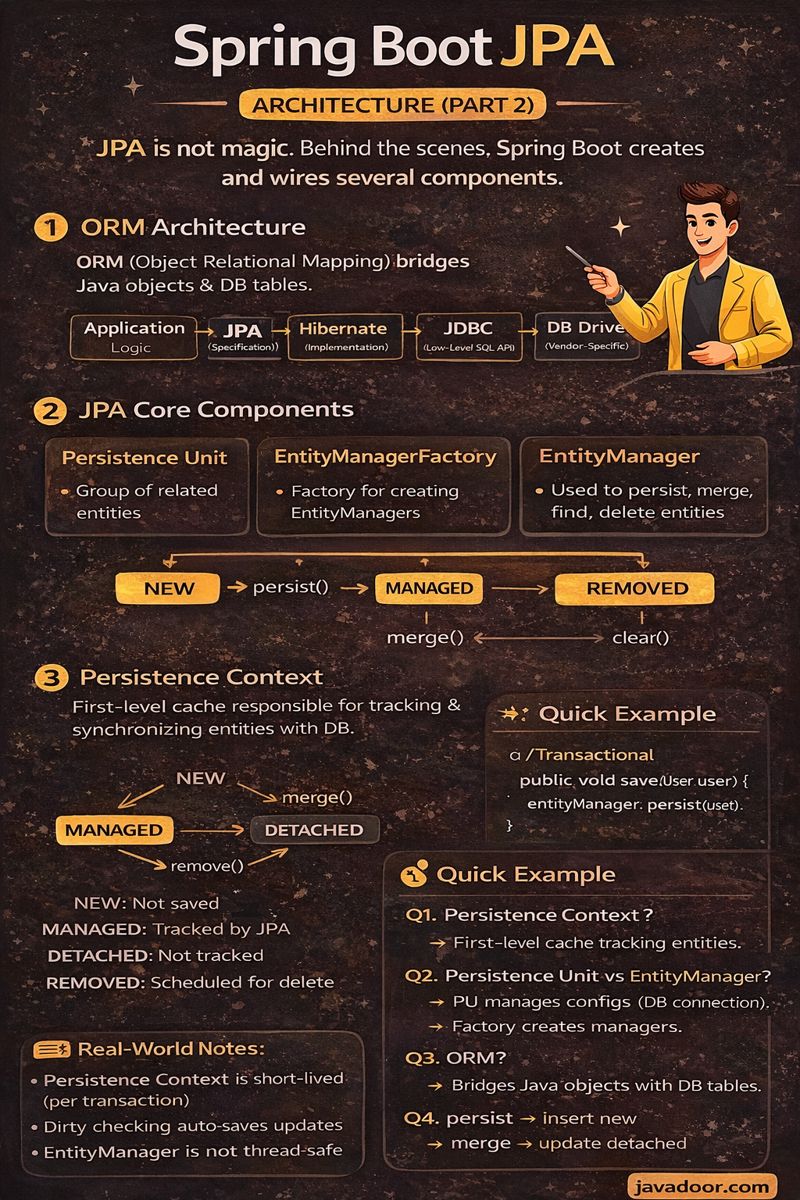

1. ORM Architecture

Flow:

Application → JPA → Hibernate → JDBC → DB Driver → Database

ORM (Object Relational Mapping) acts as a bridge between Java objects and database tables.

Instead of writing SQL:

  • Tables → Entities
  • Rows → Objects
  • Queries → Method calls

2. A Simple JPA Flow

When you call repository.save(user):

  1. Spring gets an EntityManager
  2. Entity is placed in Persistence Context
  3. SQL is generated by Hibernate Dialect
  4. JDBC executes it
  5. Driver talks to DB

You only write Java — Hibernate handles SQL.

3. JPA Core Components

a) Persistence Unit

A logical group of entities that share:

  • Database config
  • JPA provider
  • Dialect

Spring Boot configures this using application.properties.

b) EntityManagerFactory

  • Created once at startup
  • One per Persistence Unit
  • Creates EntityManager objects
  • Heavy object

Spring internally uses LocalContainerEntityManagerFactoryBean.

c) EntityManager

This is your main JPA engine.

Methods:

  • persist() → insert
  • merge() → update
  • find() → select
  • remove() → delete
  • createQuery() → JPQL

EntityManager works with Persistence Context.

4. Persistence Context

Think of it as first-level cache.

  • Holds managed entities
  • Tracks changes
  • Syncs to DB during commit
  • Controls entity lifecycle

Entity States

NEW → MANAGED → REMOVED
   ↘ DETACHED ↗
State Meaning
New Not saved
Managed Tracked by JPA
Detached Not tracked
Removed Scheduled for delete

5. Transaction Manager

Transaction manager binds EntityManager with DB transaction.

Two types:

  • RESOURCE_LOCAL → Single DB
  • JTA → Multiple DB (distributed)

Spring auto-creates it based on config.

6. @Transactional Matters

EntityManager write operations must be inside a transaction.

Without @Transactional:

entityManager.persist(user); // ERROR

With:

@Transactional
public void save(User user) {
   entityManager.persist(user);
}

Now JPA opens transaction, commits, flushes SQL.

7. JpaRepository & Transactions

Spring Data internally annotates:

  • save()
  • delete()
  • update()

with @Transactional.

That’s why they work even when you don’t add it.

8. Dialect

Hibernate uses Dialect to convert JPQL into DB-specific SQL.

Examples:

  • MySQL → MySQLDialect
  • H2 → H2Dialect
  • PostgreSQL → PostgreSQLDialect

9. H2 Console

Enable:

spring.h2.console.enabled=true
spring.h2.console.path=/h2-console

EXTRA REAL-WORLD NOTES

  • EntityManager is not thread-safe
  • PersistenceContext is per transaction
  • flush() syncs SQL before commit
  • clear() removes cache
  • Dirty checking auto updates DB

INTERVIEW QUESTIONS

Q1. What is Persistence Context?

First-level cache that manages entity lifecycle.

Q2. Difference between EntityManager & EntityManagerFactory?

Factory creates managers; manager performs CRUD.

Q3. Why is @Transactional required?

To bind JPA operations to DB transactions.

Q4. What is Hibernate Dialect?

Maps JPQL to database-specific SQL.

Q5. Difference between merge() and persist()?

persist merge
New entity Detached entity
Insert Update

Q6. What happens if transaction is missing?

Exception: No EntityManager with actual transaction available.

  •
