Project Setup & Layered Architecture

Project Setup & Layered Architecture

📌 1. Introduction to Spring Boot

Spring Boot is a framework built on top of Spring Framework that simplifies application development, configuration, and deployment.

🔑 Key Objectives of Spring Boot

  • Reduce boilerplate configuration
  • Enable rapid application development
  • Provide production-ready defaults
  • Simplify dependency management

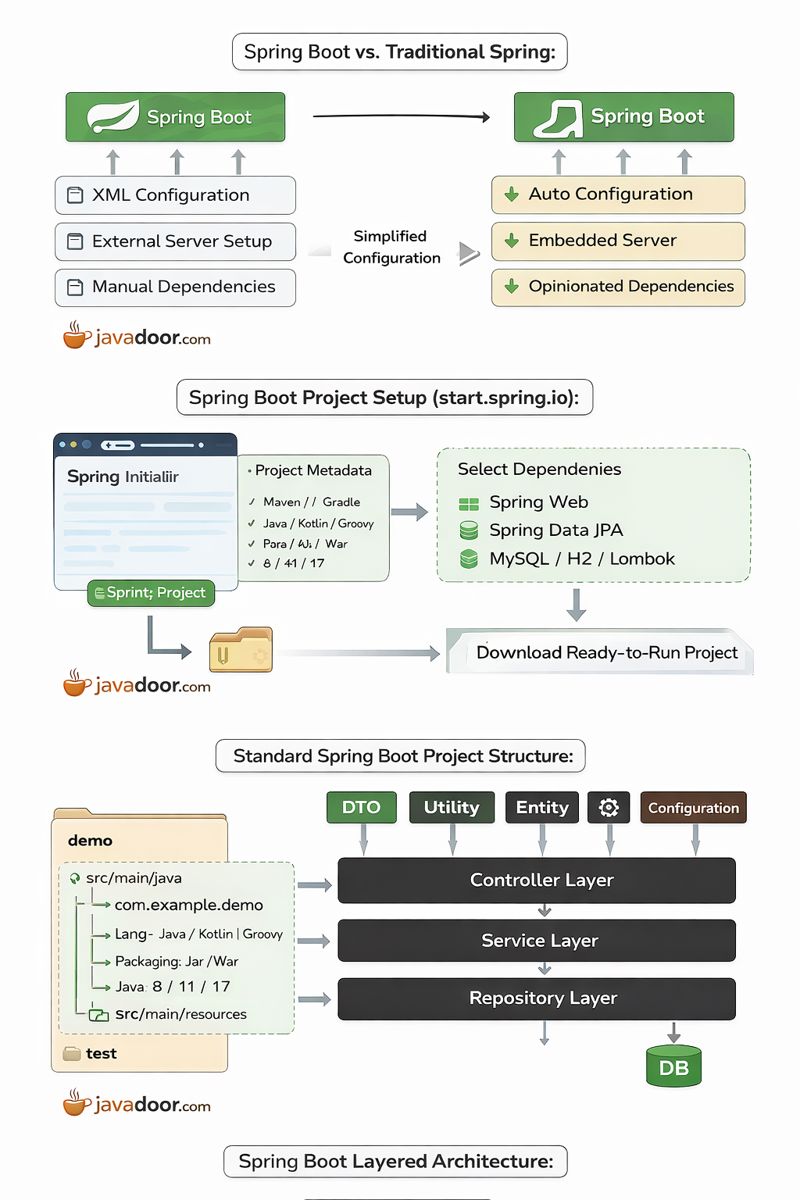

🔥 Why Spring Boot?

Traditional Spring Spring Boot
XML-heavy config Auto Configuration
External server setup Embedded Tomcat
Manual dependency versions Starter dependencies

✅ Quick Summary

  • Spring Boot is an opinionated framework
  • Focuses on convention over configuration
  • Ideal for microservices & REST APIs

❓ Interview / Exam Questions

  1. What problems does Spring Boot solve?
  2. Difference between Spring and Spring Boot?
  3. What is opinionated default in Spring Boot?

📌 2. Setting Up a Spring Boot Project (Using Spring Initializr)

Spring Boot projects are commonly created using Spring Initializr.

🌐 Tool Used

  • Website: start.spring.io

🔧 Project Setup Options (Explained)

Option Purpose
Project Maven / Gradle
Language Java
Spring Boot Version Stable recommended
Group Base package (e.g., com.example)
Artifact Project name
Packaging Jar / War
Java Version 8 / 11 / 17

📦 Dependency Selection

  • Spring Web → REST APIs, MVC
  • Spring Data JPA → ORM & DB access
  • H2 / MySQL / PostgreSQL → Database
  • Lombok → Reduce boilerplate code

✅ Quick Summary

  • Spring Initializr generates a ready-to-run project
  • Maven manages dependencies automatically
  • Embedded server eliminates manual setup

❓ Interview / Exam Questions

  1. What is Spring Initializr?
  2. What is the role of Maven in Spring Boot?
  3. Difference between Jar and War packaging?

📌 3. Spring Boot Project Structure

Once generated, the project follows a standard directory structure.

📁 Default Structure

src/main/java
 └── com.example.demo
     └── DemoApplication.java

src/main/resources
 ├── application.properties
 └── static / templates

🧠 Important Files

  • DemoApplication.java
    • Entry point
    • Contains @SpringBootApplication
  • application.properties
    • Configuration file
    • DB, server port, logging, etc.

✅ Quick Summary

  • Follows convention-based structure
  • Easy for developers & tools
  • Configuration centralized

❓ Interview / Exam Questions

  1. What is the role of application.properties?
  2. Why is @SpringBootApplication important?
  3. What happens if main class is outside base package?

📌 4. Layered Architecture in Spring Boot

Layered architecture ensures separation of concerns, maintainability, and testability.

🧱 Layers Overview

🔹 1. Controller Layer

  • Handles HTTP requests
  • Uses annotations:
    • @RestController
    • @RequestMapping
    • @GetMapping, @PostMapping
@RestController
@RequestMapping("/payments")
public class PaymentController {
    @PostMapping
    public String pay() {
        return "Payment Done";
    }
}

🔹 2. Service Layer

  • Contains business logic
  • Acts as bridge between Controller & Repository
  • Annotated with @Service
@Service
public class PaymentService {
    public String processPayment() {
        return "Processed";
    }
}

🔹 3. Repository Layer

  • Handles database operations
  • Uses Spring Data JPA
  • Annotated with @Repository
public interface PaymentRepository
        extends JpaRepository<Payment, Long> {
}

🖼️ Required Diagram / Image

Type: Data Access Diagram
Labels must contain:

  • Repository
  • JPA
  • Database
    Explains:
    How data flows from service to DB.

🔹 4. Entity Layer

  • Maps Java class to DB table
  • Uses @Entity, @Id, @Column
@Entity
public class Payment {
    @Id
    private Long id;
    private double amount;
}

🔹 5. DTO (Data Transfer Object)

  • Transfers data without exposing entity
  • Improves security & performance

🔹 6. Utility Layer

  • Common reusable logic
  • Example: DateUtils, ValidationUtils

🖼️ No diagram required for this topic.

🔹 7. Configuration Layer

  • Centralized application configuration
  • Uses:
    • @Configuration
    • @Bean

🖼️ Required Diagram / Image

Type: Configuration Diagram
Labels must contain:

  • Configuration Class
  • Bean
  • IoC Container
    Explains:
    How beans are created and managed.

🧩 Complete Layered Architecture Flow (From PDF)

Client → Controller → Service → Repository → Database
Supporting layers: DTO, Entity, Utility, Configuration

⚙️ Internal Working (Important for Interviews)

  1. Client sends HTTP request
  2. DispatcherServlet receives request
  3. Controller method invoked
  4. Service executes business logic
  5. Repository interacts with DB
  6. Response returned as JSON

🚀 Performance & Best Practices

  • Keep Controllers thin
  • Business logic only in Service
  • Use DTOs to avoid entity exposure
  • Enable pagination in repositories
  • Use @Transactional where required

✅ Quick Summary

  • Layered architecture enforces clean separation
  • Improves scalability & testability
  • Industry-standard for Spring Boot apps

❓ Interview / Exam Questions

  1. Why do we need layered architecture?
  2. Difference between Entity and DTO?
  3. Can Controller talk directly to Repository?
  4. Where should validation logic go?
  5. What happens if Service layer is skipped?
